  • USB 2.0 full speed
  • ISO/IEC14443/18092
  • ISO/IEC 7816
  • National identity cards reading
  • Windows/Linux/Android
  • PC/SC CCID

To meet the needs of the constantly changing market, Markland has integrated technologies such as ISO/IEC 7816 contact smart cards, 13.56 MHz contactless smart cards, and NFC with fingerprint biometrics and a keyboard, to launch a series of multi-function smart card reader/writer solutions that meet the requirements of the emerging market

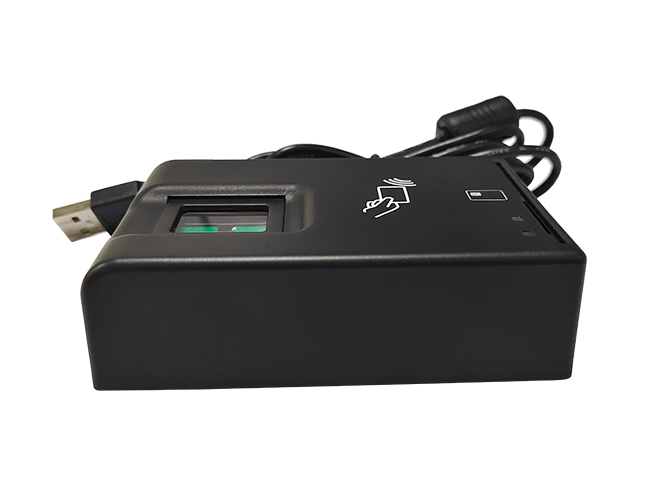

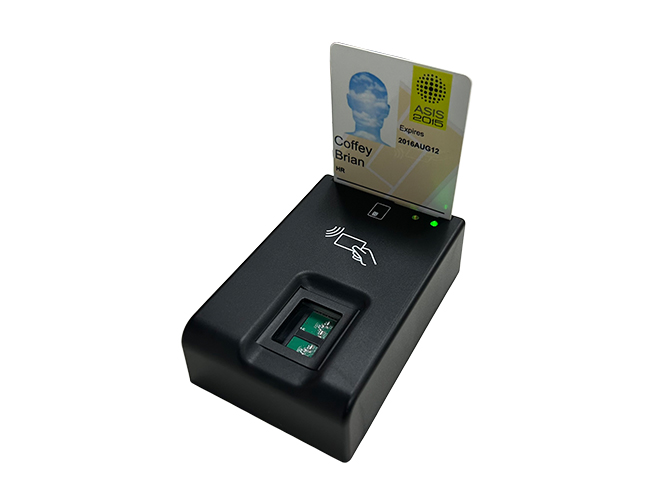

The MZR02 is an ideal combination of fingerprint biometrics, contact smart cards (ISO/IEC 7816), 13.56 MHz contactless technology, and NFC, suitable for any smart card application that requires multi-factor authentication to achieve higher security without sacrificing convenience












Integrated Technology
-500 DPI optical fingerprint sensor
-Combines contact, contactless, and NFC technologies
-Supports hybrid credential groups
-Compatible with mainstream contact, contactless, and dual-interface smart cards on the market












Reliable, Fast, and Secure
-Certified by FBI PIV/FIPS 201 and FBI Mobile ID FAP20
-Fast and accurate verification
-Two-factor authentication, providing a multi-functional security solution









It can be applied to various high-security industries
including government, healthcare, financial institutions, and telecommunications
Cybersecurity
Access control
Public Key Infrastructure (PKI).


























Physical properties
Dimensions: 102.5 x 67 x 29.5 mm Weight 195 g ± 5%
Fingerprint sensor
The effective area of acquisition is 15.24mm * 20.32mm
Image Resolution: 500 DPI±1%

Host interface
USB 2.0 CCID (USB 1.1/3.0 compatible)
Support Specification
Contact: IISO/IEC 7816 Part 1 to 4, classes A/B/C (5V, 3.3V, 1.8V)
Contactless: ISO/IEC 14443 A&B, ISO/IEC18092
Parts
1.5m USB type A cable, two-color LED
Certifications/Standards
ISO/IEC 7816, ISO/IEC 14443, USB 2.0 Full Speed, CCID, Microsoft® WHQL,FBI PIV-071006, Mobile ID FAP 20
PC/SC driver
PC/SC Ver. 2.01.14 specification is used to:
• Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP,
• MacOS 10.9.x - 12.2.x,
• Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit),
Android 8.0 and above
Software
• PC/SC API;
• CT-API (through wrapper on top of PC/SC);
• M-Card API (through wrapper on top of PC/SC)
