  • USB 2.0 full speed
  • ISO/IEC 14443/18092
  • ISO/IEC 7816
  • National identity cards reading
  • Windows/Linux/Android
  • PC/SC CCID

To meet the needs of the constantly changing market, Markland has integrated technologies such as ISO/IEC 7816 contact smart cards, 13.56 MHz contactless smart cards, and NFC with fingerprint biometrics and a keyboard, to launch a series of multi-function smart card reader/writer solutions that meet the requirements of the emerging market

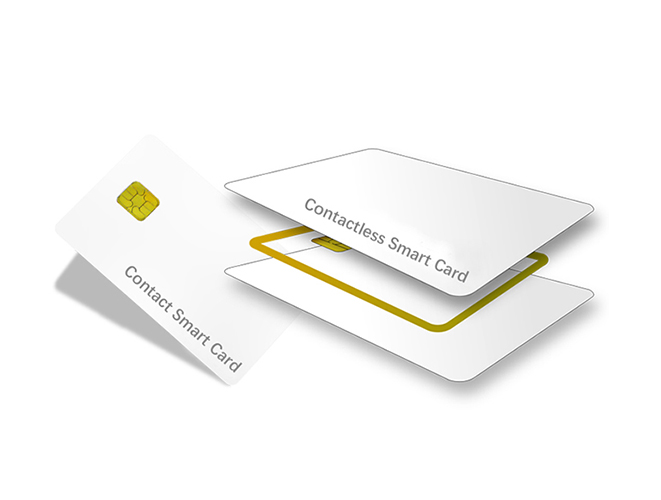

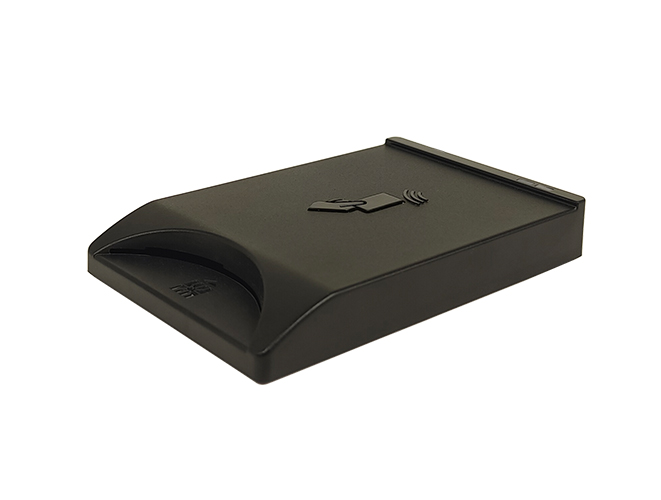

The MCR2100 is a dual-interface smart card reader/writer that supports reading and writing of contact and contactless smart cards compliant with ISO/IEC 7816 and ISO/IEC 14443 standards. It provides convenience and flexibility for a wide range of smart card applications










A powerful integrated device
-Utilizes contact, contactless, Lascom, and NFC technologies
-Supports hybrid credential groups
-Supports mainstream smart cards, standards, and technologies on the market














Convenient for end-users
-Complies with the PC/SC standard, plug and play
-Compact and portable, doesn't take up space
-Supports customization, including the casing, color, packaging, and logo











Main applications
-Suitable for application in various high-security industries
-Including government, healthcare, financial institutions, and telecommunications
-It is also commonly used in retail and membership management


























Physical characteristics
Dimensions: 103 x 67.5 x 15 mmWeight 95 g ± 5% (with base)
Host interface
USB 2.0 CCID (USB 1.1/3.0 compatible)
Support Specification
ISO/IEC7816, ISO/IEC14443 A&B protocols
Parts
1.5m USBTypeA cable, two-color LED
Certifications/Standards
ISO/IEC 7816,
ISO/IEC 14443,
USB 2.0 Full Speed, CCID, Microsoft® WHQL
PC/SC driver
PC/SC Ver. 2.01.14 specification is used to:
• Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP,
• MacOS 10.9.x - 12.2.x,
• Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit),
• Android 8.0 and above
Software
• PC/SC API;
• CT-API (through wrapper on top of PC/SC);
• M-Card API (through wrapper on top of PC/SC)
