  • USB 2.0 full speed
  • ISO/IEC 14443/18092
  • ISO/IEC 7816
  • National identity cards reading
  • Windows/Linux/Android
  • PC/SC CCID

To meet the needs of the constantly changing market, Markland has integrated technologies such as ISO/IEC 7816 contact smart cards, 13.56 MHz contactless smart cards, and NFC with fingerprint biometrics and a keyboard, to launch a series of multi-function smart card reader/writer solutions that meet the requirements of the emerging market

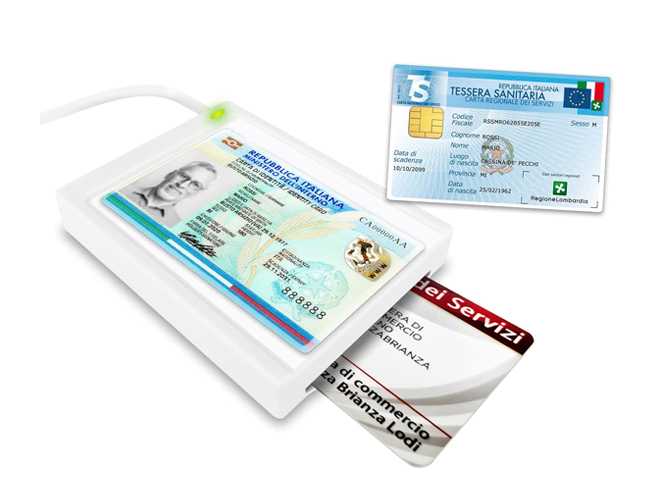

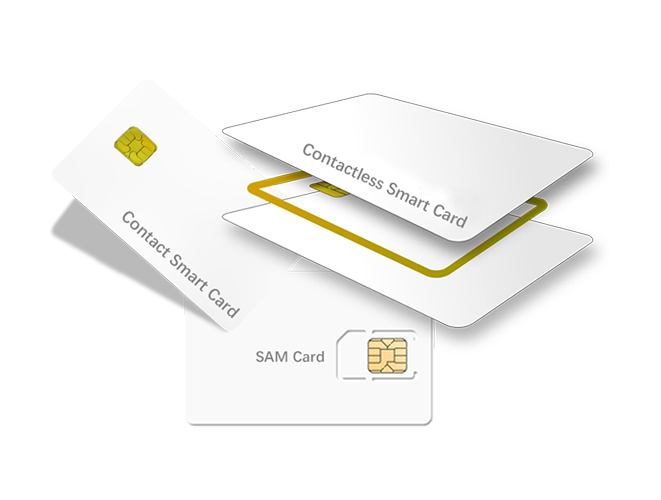

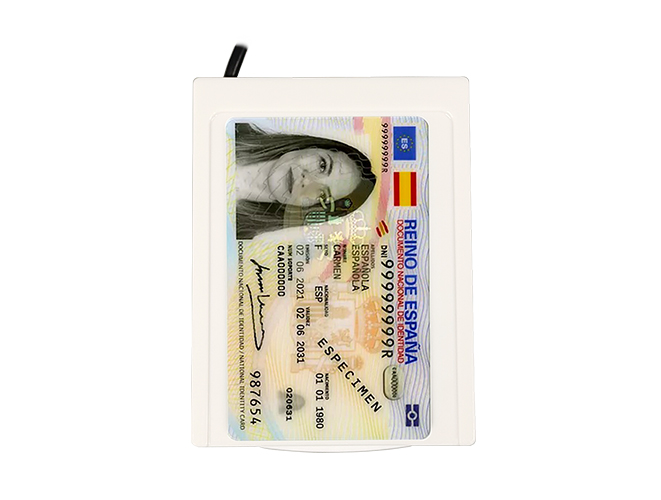

The MCR4000P perfectly integrates contact and contactless dual-interface technologies along with the SAM (Security Access Module) into a single device. It supports contact smart cards compliant with ISO/IEC 7816 and contactless smart cards operating at 13.56 MHz, as well as SAM cards conforming to the ISO/IEC 7816 standard. This provides a high level of security for smart card applications such as authentication and payment

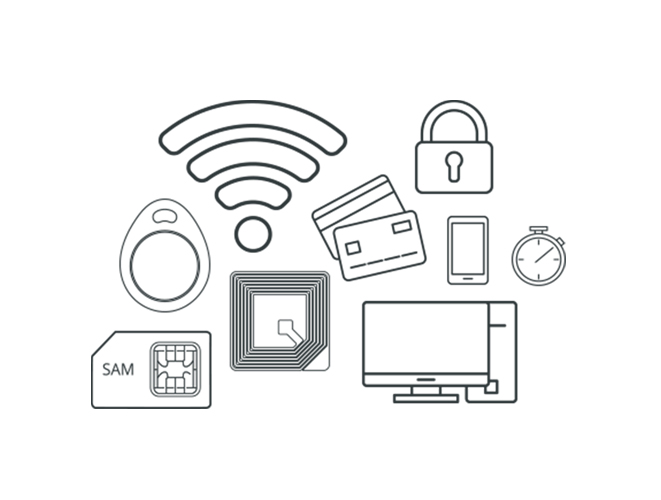

Converged technology
-Utilizes contact, contactless, Lascom, and NFC technologies
-Supports hybrid credential groups
-Supports mainstream smart cards, standards, and technologies on the market














Fast, interoperable, and secure
-Fast transaction times
-Supports ISO/IEC 14443 and ISO/IEC 7816
-Optional Security Access Module (SAM)











Main applications
-Network login and secure web-based transactions
-Government applications, such as online tax filing
-Customer membership management

























Physical characteristics
Dimensions: 103 x 76 x 17 mm Weight 126 g ± 5% (with base)
Host interface
USB 2.0 CCID (USB 1.1/3.0 compatible)
Support Specification
ISO/IEC7816, ISO/IEC14443 A&B protocols
Parts
1.5m USBTypeA cable, two-color LED
Certifications/Standards
ISO/IEC 7816,
ISO/IEC 14443,
USB 2.0 Full Speed, CCID, Microsoft® WHQL
PC/SC driver
PC/SC Ver. 2.01.14 specification is used to:
• Windows® 7/8/10/11 (32 and 64 bit), Windows® Server 2008/2012/2016/2019, WindowsXP,
• MacOS 10.9.x - 12.2.x,
• Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit),
•Android 8.0 and above
Software
• PC/SC API;
• CT-API (through wrapper on top of PC/SC);
• M-Card API (through wrapper on top of PC/SC)
